Corrugated metal and profiled sheets for roof and wall

We can offer you a range of corrugated metal and profiled sheets for roof and wall in various lengths and colour finishes.

Overview of profiled sheets available

Here you can find our list. In addition, we are able to provide sheets in wood-look finish, which are often used in agriculture.

Trapezoidal sheets 100-WA-01

Aluminium, stainless steel, anti drip, perforation

Nominal
thickness
mm
Weight
kg/m²
0,504,97
0,605,82
0,636,26
0,706,79
0,757,45
0,888,74
1,009,93
1,1311,22
1,2512,41
Steel profile sheet cladding Wall01 - cross-section

Corrugated sheets wall 100-WA-02

Aluminium, stainless steel, anti drip, perforation

Nominal thickn
mm
Weight
kg/m²
0,504,67
0,635,89
0,757,01
0,888,22
1,009,35
Steel profile sheet cladding Wall 02 - cross-section

Trapezoidal sheets Wall 100-WA-03

Nominal thickn.
mm
Weight
kg/m²
0,504,39
0,605,27
0,706,15
0,887,73
Steel profile sheet cladding Wall 03

Corrugated sheet for wall 100-WA-04:

Properties: Aluminium; stainless steel; Anti-rust;Perforation

Nominal thickn.
mm
Weight
kg/m²
0,504,91
0,636,18
0,757,36
0,888,64
1,009,81
1,1311,09
1,2512,27
Steel profile sheet cladding wall 04 - cross-section

Trapezoidal sheet 100-WA-05

Properties: Aluminium; stainless steel; anti-rust; perforation | OPTIONAL: with reinforcement

Nominal thickn.
mm
Weight
kg/m²
0,504,46
0,635,62
0,756,69
0,887,85
1,008,92
Steel profile sheet cladding wall 05 - cross-section

Trapezoidal sheet wall 100-WA-06

OPTIONAL:  with reinforcement

Nominal thickness
mm
Weight
kg/m²
0,504,63
0,605,55
0,706,48
0,888,14
Steel profile sheet cladding wall 06 - cross-section

Trapezoidal sheet 100-WA-07

Properties: Aluminium, stainless steel, anti-rust, Perforation | OPTIONAL: with reinforcement

Nominal thickn.
mm
Weight
kg/m²
0,504,74
0,635,97
0,757,11
0,888,34
1,009,48
1,2510,71
Steel profile sheet cladding wall 07 - cross-section

Trapezoidal sheet wall 100-WA-08

OPTIONAL: with reinforcement

Nominal thickn.
mm
Weight
kg/m²
0,505,23
0,606,28
0,707,33
0,889,21
Steel profile sheet cladding wall 08 - cross-section

Trapezoidal sheet Wall 100-WA-09

Properties: Aluminium, Stainless steel, Anti-rust, Perforation | OPTIONAL: with reinforcement

Nominal thickn.
mm
Weight
kg/m²
0,505,36
0,636,76
0,758,04
0,889,44
1,0010,72
Steel profile sheet cladding wall 09 - cross-section

Trapezoidal sheet 100-WA-10

Properties: Aluminium, Stainless steel, Anti-rust, Perforation

Nominal thickn.
mm
Weight
kg/m²
0,505,45
0,636,90
0,758,30
0,889,70
1,0011,00
Steel profile sheet cladding wall 10 - cross-section

Trapezoidal sheet wall 100-WA-11

Nominal thickn.
mm
Weight
kg/m²
0,707,45
Steel profile sheet cladding wall 11 - cross-section

Trapezoidal sheet Wall 100-WA-12

Properties: Aluminium, stainless steel, Anti-rust, Perforation | OPTIONAL: with reinforcement

Nominal thickn.
mm
Weight
kg/m²
0,504,91
0,636,18
0,757,36
0,888,64
1,009,81
1,2512,27
Steel profile sheet cladding wall 12 - cross-section

Trapezoidal sheet wall 100-WA-13:

Nominal thickn.
mm
Weight
kg/m²
0,503,93
0,604,71
Steel profile sheet cladding wall 13 - cross-section

Trapezoidal sheet wall 100-WA-14:

Nominal thickn.
mm
Weight
kg/m²
0,504,35
0,605,22
0,706,09
Steel profile sheet cladding wall 14 - cross-section

Corrugated sheet roof 100-DA-01

Properties: Aluminium, Stainless steel, Anti-rust, Perforation

Nominal thickn.
mm
Weight
kg/m²
0,504,97
0,605,82
0,636,26
0,706,79
0,757,45
0,888,74
1,009,93
1,1311,22
1,2512,41
Steel profile sheet cladding roof 01 - cross-section

Corrugated sheet roof 100-DA-02

Properties: Aluminium, stainless steel, Anti-rust, Perforation

Nominal thickn.
mm
Weight
kg/m²
0,504,67
0,635,89
0,757,01
0,888,22
1,009,35
1,1310,56
1,2511,68
Steel profile sheet cladding roof 02 - cross-section

Trapezoidal sheet roof 100-DA-03:

Nominal thickn.
mm
Weight
kg/m²
0,504,39
0,605,27
0,706,15
0,887,73
Steel profile sheet cladding roof 03

Corrugated sheet roof 100-DA-04

Properties: Aluminium, stainless steel, Anti-rust, Perforation

Nominal thickn.
mm
Weight
kg/m²
0,504,91
0,636,18
0,757,36
0,888,64
1,009,81
1,1311,09
1,2512,27
Steel profile sheet cladding roof 04 - cross-section

Trapezoidal sheet roof 100-DA-05:

Properties: Aluminium, Stainless steel, Anti-Rust, Perforation | OPTIONAL: with reinforcement

Nominal thickn.
mm
Weight
kg/m²
0,504,46
0,635,62
0,756,69
0,887,85
1,008,92
1,1310,08
1,2511,15
Steel profile sheet cladding roof 05 - cross-section

Trapezoidal sheet roof 100-DA-06:

Anti-Rust

Nominal thickn.
mm
Weight
kg/m²
0,504,79
0,605,75
0,706,70
0,888,43
Steel profile sheet cladding roof 06 - cross-section

Trapezoidal sheet roof 100-DA-07:

OPTIONAL: with reinforcement

Nominal thickn.
mm
Weight
kg/m²
0,504,63
0,605,55
0,706,48
0,888,14

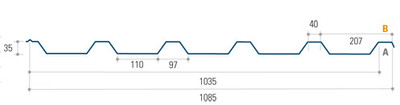

Steel profile sheet cladding roof 07 - cross-section

Trapezoidal sheet roof 100-DA-08:

Properties: Aluminium, stainless steel, anti-drip, perforation | OPTIONAL: with reinforcement

Nominal thickn.
mm
Weight
kg/m²
0,504,74
0,635,97
0,757,11
0,888,34
1,009,48
1,2510,71

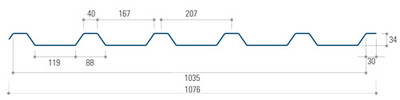

Section trapezoidal roofing sheet 08

Trapezoidal sheet roof 100-DA-09:

Nenndicke
mm
Gewicht
kg/m²
0,505,23
0,606,28
0,707,33
0,889,21

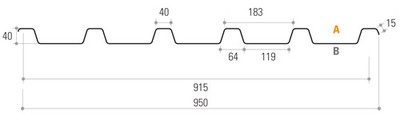

Steel profile sheet cladding roof 09 - cross-section

Trapezoidal sheet 100-DA-10:

Properties: Aluminium, stainless steel, Anti-rust, Perforation | OPTIONAL: with reinforcement

Nominal thickn.
mm
Weight
kg/m²
0,505,36
0,636,76
0,758,04
0,889,44
1,0010,72
1,2513,41
Steel profile sheet cladding roof 10 - cross-section

Trapezoidal sheet roof 100-DA-11:

Anti-Rust

Nominal sheet roof
mm
Weight
kg/m²
0,504,79
0,605,75
0,706,70
0,888,43
Steel profile sheet cladding roof 11 - cross-section

Trapezoidal sheet roof 100-DA-12:

Properties: Aluminium, stainless steel, Anti-Rust, Perforation

Nominal thickn.
mm
Weight
kg/m²
0,504,91
0,636,18
0,757,36
0,888,64
1,009,81
1,2512,27
Steel profile sheet cladding roof 12 - cross-section

Corrugated sheet roof 100-DA-13:

Nominal thickn.
mm
Weight
kg/m²
0,606,38
0,636,70
0,707,45
0,757,98
Steel profile sheet cladding roof 13 - cross-section

Trapezoidal sheet roof 100-DA-14:

Properties: Aluminium, stainless steel, Anti-rust, Perforation | OPTIONAL: with reinforcement

Nominal thickn.
mm
Weight
kg/m²
0,504,91
0,636,18
0,757,36
0,888,64
1,009,81
1,2512,27

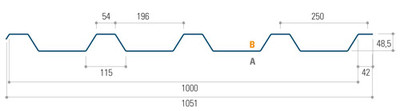

Steel profile sheet cladding roof 14 - cross-section

Trapezoidal sheet roof 100-DA-15:

Properties: Aluminium, stainless steel, Anti-rust, Perforation

Nominal thickn.
mm
Weight
kg/m²
0,505,19
0,636,54
0,757,79
0,889,14
1,0010,38
1,2512,98

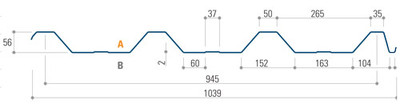

Steel profile sheet cladding roof 15 - cross-section

Roof sheet tiles 100-DA-16:

Anti-Rust

Nominal thickn.
mm
Weight
kg/m²
0,505,00
Roof tile cladding 16 - cross-section

Tailored production

On request, we can offer you the full range of sheets produced new to your requirements in any lengths and RAL-colour tones. We are also able to provide you with special offers and returned orders.
