Tek skruer og fastgørelser

Skruer til isolerede paneler og bølgeplader

Vi tilbyder et omfattende udvalg af skruer og fastgørelser til professionelt brug som kan tjene en række formål og materialer. De egner sig naturligvis til brug sammen med vores tagpaneler og vægpaneler. Vi kan levere skruer og fastgørelser til sandwichpaneler og bølgeplader.

Oversigt over tilgængelige fastgørelser

Screws for sandwich panels 7510:

Properties:

  • Hexagonal drill-screws SW 8
  • with drill-point No. 2
  • for fastening to cold-rolled sectional beams of 2 x 0.63 3.5 mm.

** (also available with moulded NYCO head and wings for fastening roofing membrane-faced composite panels)

Length [mm]
Ø 5,5 x

Length Stainless Steel [mm]

2510
2813
3818
5025
6047
8068

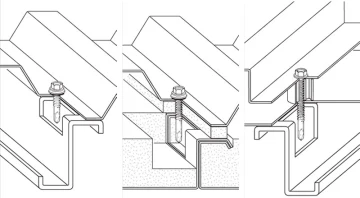

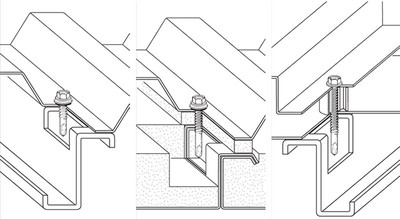

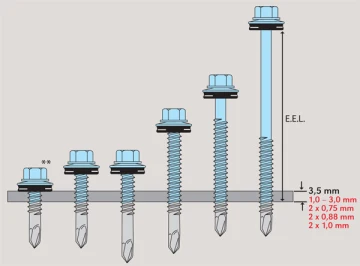

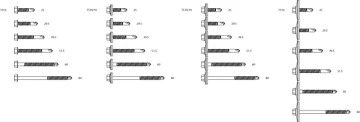

Screws 7510 View 2Example of use screw 7510

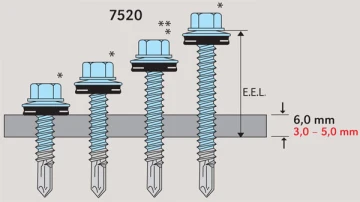

Screws for insulated panels 7520:

Properties:

  • Hexagon self--drilling screw,
  • size 8,
  • with drill point no. 3,
  • for fastening to cold-rolled sectional beams and purlins of 1.5 - 6.0 mm.
  • Item 7520 is also available in A4 stainless steel as '7524', in lengths of 26 mm, 32 mm, 38 mm and 60 mm.

** (also available with moulded NYCO head and wings for fastening roof membrane composite panels))

Length [mm]
Ø 5,5 x
Length Stainless Steel [mm]
2610
3216
3822
5034

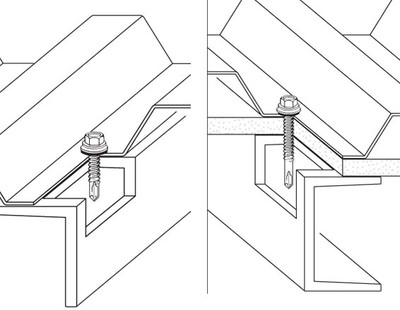

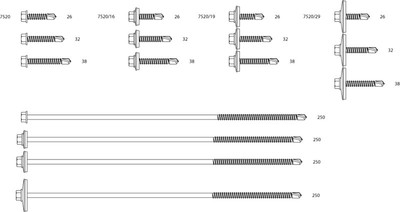

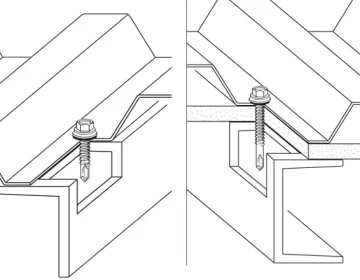

Fastener 7520 View 2Example usage screw 7520

Screws for insulated panels 7530:

Eigenschaften:

  • Hexagon self--drilling screw,
  • size 8,
  • with drill head no. 5,
  • or fastening to hot-rolled sectional beams of 4.0 - 12.5 mm.
  • 7530 is also available in A4 stainless steel as "7534", in the length of 40 mm.

** (also available with moulded NYCO head and wings for fastening roof membrane composite panels)

Length [mm]
Ø 5,5 x
Length Stainless Steel  [mm]
4016
5026
6238
8056
10076
225201
250226
280255

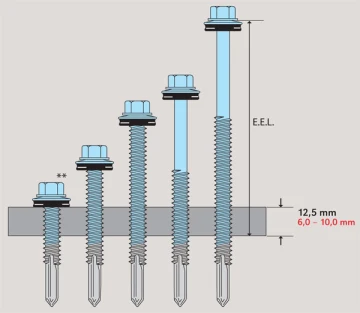

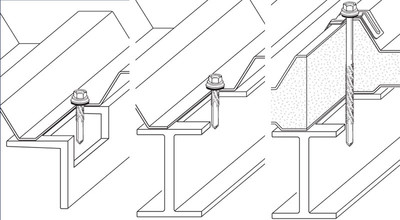

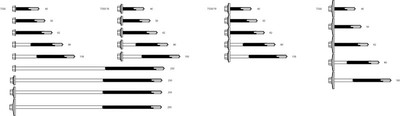

Fastener 7530 View 2Example usage screw 7530

Screws for insulated panels 7550:

Properties:

  • Hexagon self-drilling screw
  • size 8,
  • with reduced drill point no. 1,
  • for stitching trapezoidal sheets with maximum overlaps of 2 x 1.25 mm.
  • 7550 is also available in A4 stainless steel as "7554" of 4.8 x 20 mm
Length [mm]Length Stainless Steel  [mm]
Ø 4,8 x 208
Ø 5,5 x 2210
Ø 6,3 x 2512
Ø 7,2 x 3321

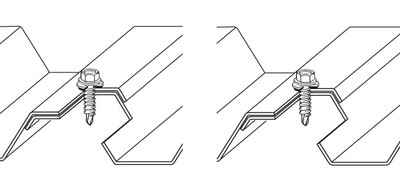

Example usage screw 7550Fastener 7550 View 2

Screws for insulated panels 7553:

Properties:

  • Hexagon self-drilling screw
  • size 8,
  • with reduced drill point no. 1 and
  • with undercut,
  • for connecting trapezoidal sheets with a minimum overlap of 2 x 1.25 mm.
Length [mm]Length Stainless Steel [mm]
Ø 4,8 x 208
Ø 5,5 x 2210

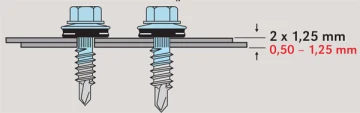

Fastener 7553 View 2

Screws for insulated panels 7561 / 7565:

Properties:

  • Hexagon self-drilling screw
  • size 8,
  • with reduced drill point no. 1,
  • for fastening profiled plates to timber substructures.
  • Anchoring depth: 7 x Ø
Length [mm]
Ø 4,8 x 35
Ø 6,5 x 50
Ø 6,5 x 65
Ø 6,5 x 75
Ø 6,5 x 90
Ø 6,5 x 115
Ø 6,5 x 130
Ø 6,5 x 150
Ø 6,5 x 175

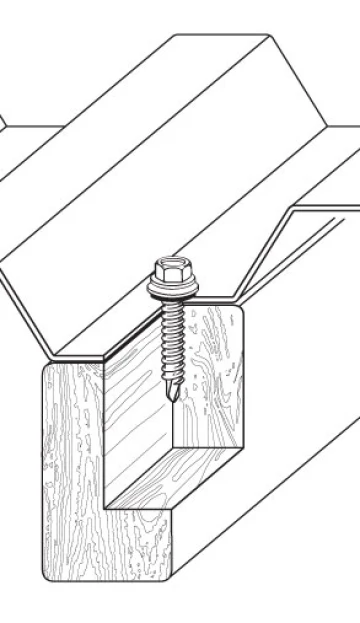

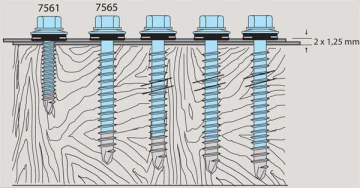

Fasteners 7561 / 7565 View 2Example usage screws 7561 / 7565

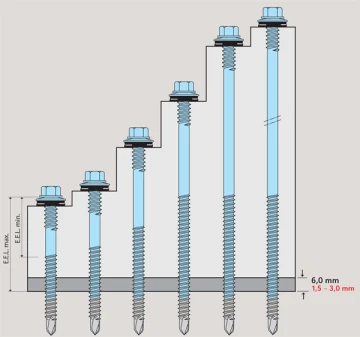

Screws for insulated panels 7570:

Properties:

  • Hexagon self-drilling screw
  • size 8,
  • drill point no. 3,
  • with safety thread,
  • Ø 5.5 / 6.3 mm,
  • for fastening sandwich panels to sectional beams and purlins of between 1.5 and 6.0 mm.

Length [mm]
Ø 5,5/6,3 x
Length Stainless Steel
[mm]
Insulation
thickness-
[mm]
70min 28min 22
max 54max 45
85min 38min 32
max 65max 60
110min 58min 52
max 90max 85
125min 63min 57
max 105max 100
145min 68min 62
max 125max 120
175min 98min 92
max 155max 150

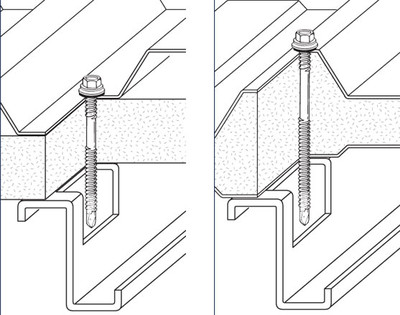

Example usage screw 7570

Screws for insulated panels 7571:

Properties:

  • Hexagon self-drilling screw
  • size 8,
  • drill point no. 2,
  • with safety thread,
  • Ø 5.5 / 6.3 mm,
  • for fastening sandwich panels to sectional beams and purlins of between 1.2 and 3.5 mm.
Length [mm]
Ø 5,5/6,3 x
Length Stainless Steel
[mm]
Insulation-
thickn. [mm]
70min 29min 22
max 50max 44
85min 39min 36
max 65max 61
110min 59min 56
max 90max 86
125min 64min 61
max 105max 101
145min 69min 66
max 125max 121
175min 99min 96
max 155max 151
195min 119min 116
max 175max 171

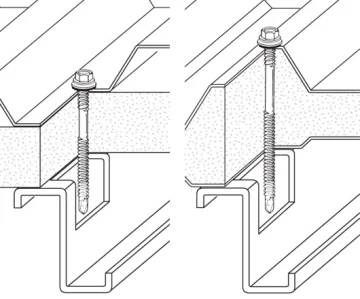

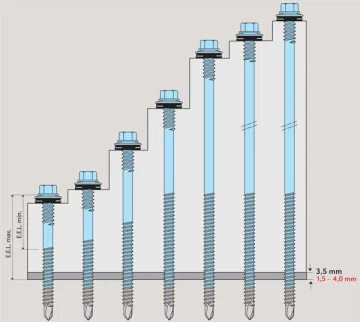

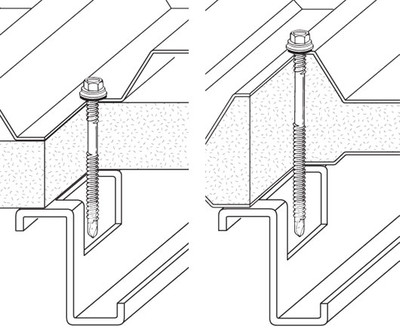

Fastener 7571 View 2Example usage screw 7571

Screws for insulated panels 7575:

Properties:

  • Hexagon self-drilling screw
  • size 8,
  • drill point no. 5,
  • with safety thread,
  • Ø 5.5 / 6.3 mm,
  • for fastening sandwich panels to sectional beams of between 4.0 and 12.5 mm.
Length [mm]
Ø 5,5/6,3 x
Length Stainless Steel
[mm]
Insulation-
thickn. [mm]
80min 34min 22
max 54max 42
95min 41min 29
max 69max 57
115min 61min 49
max 89max 77
135min 81min 69
max 109max 97
155min 101min 89
max 129max 117
175min 121min 109
max 149max 137
195min 141min 129
max 169max 159

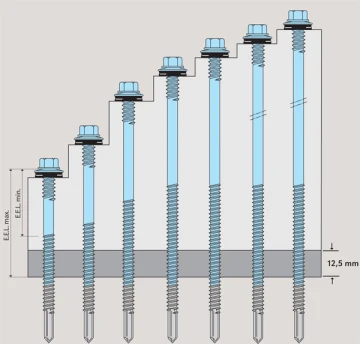

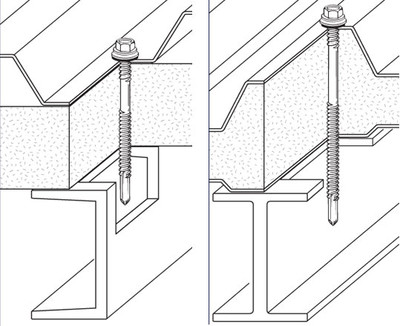

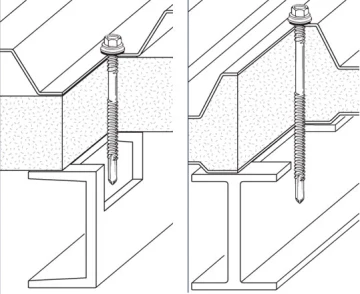

Fastener 7575 View 2Example usage screw 7575

Screws for insulated panels 7580:

Properties:

  • Hexagon self-drilling panel screw
  • size 8,
  • with reduced drill point no. 1,
  • with safety thread,
  • Ø 6.3 / 7.0 mm,
  • for fastening sandwich panels to timber substructures. Anchoring depth ≥ 50 mm
Length [mm]
Ø 6,3/7,0 x
Insulation
thickn.
[mm]
102min 27
max 50
122min 47
max 70
142min 67
max 90
162min 87
max 110
177min 102
max 125
200min 125
max 147
220min 145
max 167
240min165
max 187
260min 185
max 207

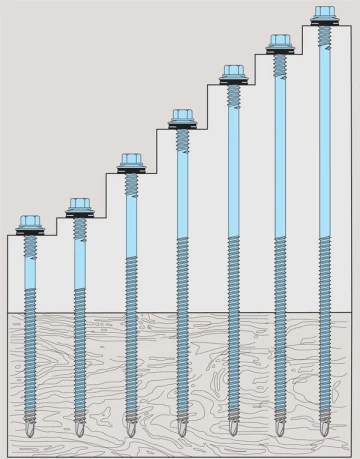

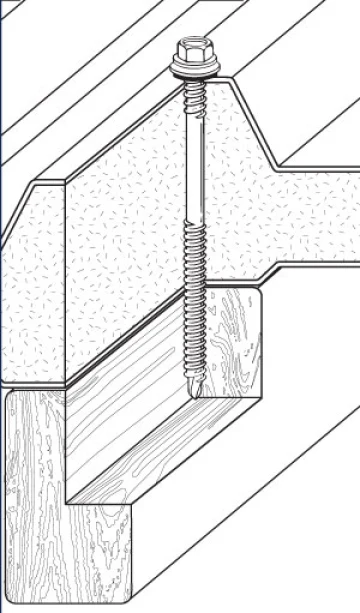

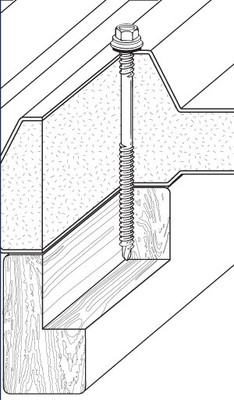

Fastener 7580 View 2Example usage screw 7580

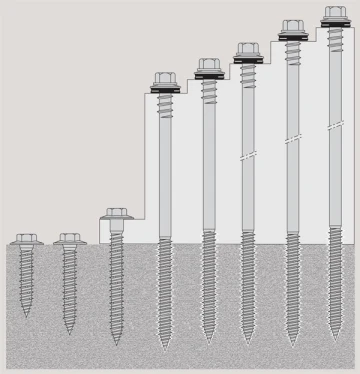

Screws for insulated panels 7890:

Properties:

  • With asymmetrical thread for fastening various sectional beams and sandwich panels to concrete.
  • 7890 is also available in A4 stainless steel as "7890 E".

Length [mm]
Ø 6,3/7,0 x
Insulation-
thickn. [mm]
32-
40-
57min 125
max 27
120min 75
max 90
140min 95
max 110
160min 115
max 130
180min 135
max 150
200min155
max 170

Skruevarianter

Her er en enkel oversigt over de tilgængelige skruer

TypeRustfriSelvborendePrisklasse
Normal boringnejnejbillig
Rustfri stålskruejanejnormal
Bi-metalskrue lavet af rustfrit stål med karbontopjajapremium
